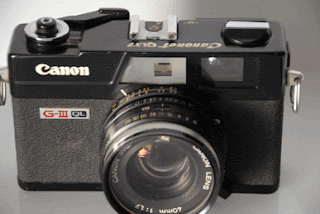

CANON CANONET QL 17 G3

Type 35mm Lens Shutter rangerfinder camera with shutter speed-priority EE Picture Size 24 x 36 mm Normal Lens Canon SE 45mm f/1.7 (6 elements in 5 groups) Shutter Copal SV; B, 1 to 1/500 sec. Built-in self-timer. Flash sync enabled with M-X switchable German socket Viewfinder Coincidence rangefinder integrated with reversed Galilean viewfinder. Automatic parallax correction with projected frames and marked finder. 0.7x magnification. Viewfinder bottom features aperture scale (f/1.7 - f/16) and match needle correct exposure window/exposure warning indicator. Exposure Meterand EE CdS comb-controlled shutter speed-priority EE. Metering range of EV 2.5 - 19 (at ISO 100). Film speed range of ISO 25 - 400. Manual exposure enabled by disabling AUTO. Power Source One 1.3 V MP mercury cell Film Loading &Advance After opening camera back, film leader is aligned at mark then advanced to first frame with Quick Loading (QL) system. Advances with camera-top lever. (120° single stroke) Frame Counter Counts up. Resets automatically when camera back is opened. Film Rewind Camera-top crank Dimensions &Weight 140 x 79 x 37 mm, 830 g
