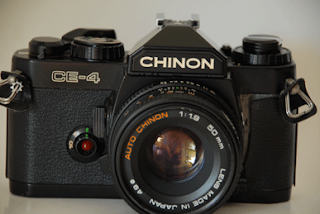

Type: 35mm automatic SLR (Single Lens Reflex) compact camera with aperture priority exposure system (AE). Picture Format: 24 X 35mm Film Loading: Easy film loading by multislot take up spool. Lens Mount: Chinon Bayonet Mount. Standard Lenses: Chinon 50mm F/1.4 50mm F/1.7, 45mm F/2.8 (All stop down to F22). Mirror: Large Quick return, shockless system. CE-4 -Shutter: Seiko MFC electromagnetic metal focal plane shutter with downward vertical path; stepless speeds from 8 to 1/1000 sec. on automatic; 13 speeds from 4 to 1/1000 sec. on manual, "B". Both automatic and manual speeds electronically controlled. CE-4s - Shutter: Seiko MFC electromagnetic metal focal plane shutter with downward vertical path; stepless speeds from 4 to 1/2000 sec. on automatic; 13 speeds from 2 to 1/2000 sec. on manual, "B". Both automatic and manual speeds electronically controlled. Shutter Release: Two stage electromagnetic type with safety lock and provision for cable release. Viewfinder - CE-4: Fixed eye-level pentaprism, central split image with microprism collar and ground glass, 16 LED's indicate shutter speeds and over/under exposure. Over exposure LED blinks and under exposure LED will glow when exposure is -2EV and will flash at-2EV or lower. Viewfinder - CE-4s: Fixed eye-level pentaprism, central split image with microprism collar and ground glass, 16 LED's indicate shutter speeds and over/under exposure. Over exposure LED blinks and under exposure LED will glow when exposure is -1EV and will flash at-1EV or lower. Viewfinder Magnification: 0.87 X with 50mm lens set at infinity. Viewfinder Visibility: 92%. Depth of Field Preview: By depressing depth of field lever. Exposure Meter: TTL, Center weighted full aperture system employing two silicon blue photo cells located on each side of viewfinder. Brightness of exposure LED's vary depending upon brightness of viewfinder. Exposure Preview: By depressing shutter release half way metering system is activated. Manual Exposure System: Complete manual override capability, match LED system. Memory Lock: Built-in exposure memory lock system. Exposure Compensation: Built-in + or - l EV in one third stop increments. Exposure Range - CE-4: EV-2 (F/1.4 @ 8 sec.) to EV+ 19 (F/22 @1000) ASA 100 50mm F/1.4 lens. Exposure Range - CE-4s: EV-1 (F/1.4 @ 4 sec.) to EV+ 20 (F/22 @2000) ASA 100 50mm F/1.4 lens. ASA Range: 25-3200 (DIN 15-36) with safety lock. Film Advance: Single stroke in an arc of 130° with 25° stand off, motorized film advance with CHINON POWER WINDER (PW-530). Multiple Exposure: Built-in switch which disengages film advance and frame counter. Automatically resets to normal position after each film advancement. UNLIMITED. Film Counter: Automatically indicates number of exposures and resets to "S" when camera back is opened. Does not advance during multiple exposure. Self-Timer: Electronically controlled at 5 or 10 seconds with flashing red LED indicator. Two seconds before exposure flashing frequency of red LED increases. Self-timer can be cancelled even after system has been activated. Film Rewind: By depressing the rewind button and cranking the rewind lever. Rewind button automatically resets when the film advance lever is turned. Accessory Shoe: Hot shoe type with X sync. and contact for Chinon dedicated flash. Synchronization: "X" strobe sync at 1/60 sec. Flash System: Chinon dedicated flash or most conventional flashes. Power Source: Three 1.5V Alkaline batteries (LR44, A76) or three 1.5V silver oxide batteries (SR44, S76, G-13). 4www.butkus.org Battery Test: Built-in with LED indicator. Body Finish: Black. Accessories: Chinon Power Winder (PW530), Deluxe carrying case, Chinon Super Multi-coated lenses, Power Winder remote control, angle finders and many more. Body Dimensions: 135.5 X 85 X 50.5mm 5.33 (W) X 3.34 (H) X 1.99 (D)". Body Weight: 485 grams ( 17.10 oz.).
